Water Filtration and parts Learn More

Learn More

Thermometer face is 2-1/2 in. diameter and has a 1/2 in. MNPT threaded connection. Temperature range reads from 0 to 250 deg. F (-20 to 120 deg.C). Learn More

A rupture disc is a secondary non-mechanical pressure protection system for your tank. The rupture disc fits between 2 in. TC fittings. It does not need a separate gasket. A rupture disc will protect your brewery and your patrons. It is extremely unwise and dangerous to operate a pressure tank without non-mechanical protection from over pressurization. Ask for a cut sheet for more information. Learn More

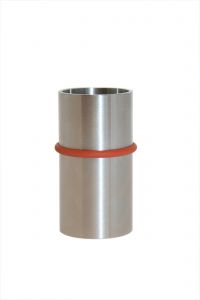

For use in bottom-cone fermentation tanks, includes FDA silicone O-Ring Learn More

Sprayballs are used either for dispersing cleaning solution into a tank, or sparging onto a lauter tun grain bed. The sprayball slips onto tubing with a hairpin clip. 2-1/2 in. sprayballs slip over 1 in. tubing and will clean up to 5 foot diameter vessels. 3-1/2 in. sprayballs slip over 1-1/2 in. tubing and will clean up to 10 foot diameter vessels. Optimum operation: 40 GPM @ 25 PSI. 316 SS mat. Learn More

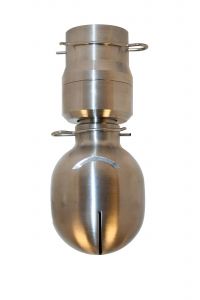

The Sani-Spin is used much the same way as a C.I.P. sprayball. The advantage of the Sani-Spin is the force of it’s spinning action and the minimal volume it requires. For example, the optimum operating condition for a C.I.P. sprayball is 40 GPM @ 25 PSI; where as the Sani-Spin requires just 25 GPM @ 30 PSI. Learn More

The gasket seats between two TC ferrules. Buna is the most common material used for temperature between -22F to +250F. Viton is commonly used for temperature up to 400F Silicone but not for low temperature. Teflon are used for higher temperature applications depending on customer preference. Learn More
